Overview

A SignalK plugin to display data from SignalK paths, Resource APIs and plugins on Electronic Shelf Labels (ESL) over a Bluetooth Low Energy (BLE) connection using simple SVG templates, or optionally created from a crafted prompt by GenAI if the companion @rhizomatics/signalk-einklabel-genai-plugin is installed.

What is an ESL?

Electronic Shelf Labels are eInk devices that consume very little battery energy, presuming they are not constantly updated - the battery is used only when the display changes (which can take 5-10 seconds) and a periodic BLE check for incoming changes. Perfect for info that changes only once or twice a day, like tidal information.

Since they are designed to be used in large quantity in small shops, they are cheap and simple devices. Earlier models required dedicated controllers, or updates over Wifi or NFC, whereas many modern ones are standalone BLE devices that can be updated from a phone or server.

Being battery operated, they can be stuck on anywhere without wiring - the only location constraints are bluetooth range, visibility (they need ambient light since the display is more like paper than a traditional lit-up electronic display) and out of the weather since the devices are intended for indoor use.

Pre-requisites

Unlike some eInk projects, this plugin doesn’t require any physical modification to the labels, or loading any new firmware. It can send an image to a supported shelf label fresh out of the box.

Most of requirements below are to make SignalK work with Bluetooth Low Energy, which is good thing to have anyway, since vendors like Victron, Switchbot, Ruuvi and others have BLE enabled hardware that’s useful to have on a boat. Direct BLE support in SignalK is being planned in 2026 and this plugin will support that when it comes.

1. A SignalK server, running Linux

• MacOS and Windows aren’t supported by the BLE interface layer, however they can be used for template development and debugging (everything except scan and paint)

2. A Bluetooth adapter, that can handle BLE (Bluetooth Low Energy).

• Bluetooth adapters for Linux can be tricky, TP-Link UB400 and Asus USB-BT500 are two well-known and available ones
• Some Raspberry Pi models come with suitable Bluetooth built in
• Don’t worry about the very latest Bluetooth versions, 4.0 is minimum for BLE, 5.0 is nice
• Home Assistant is massively more popular than SignalK, and often also run on Raspberry Pi and similar, so good source of advice

3. bluez package installed in Linux

• No need to do this if you have a Raspberry Pi with recent Raspian version, since bluez comes built in.
• If you’re not running a Raspberry Pi, then ensure that the dbus package is installed

4. One or more supported Electronic Shelf Labels

• The label used for testing this is the Zhsunyco 3.7“ BWRY

5. Correct time zone set on server if local time is to be shown on display

• See FAQ
• If not set, everything will work, but you may see the wrong zone or not have daylight savings applied

Once you have all of that, it may be worth also installing signalk-victron-ble, signalk-ruuvitag-plugin or bt-sensors-plugin to pull in data from other sensors and equipment.

Installation

Look for eInk Label Displays in the SignalK AppStore on your server ( under Apps & Plugins on the latest version).

Using Outside of SignalK

The plugin can also be installed as a stand-alone module, which can be useful for designing templates away from the boat, and makes available the esl-cli command line tool for scanning devices and debugging templates.

npm install @rhizomatics/signalk-einklabel-plugin

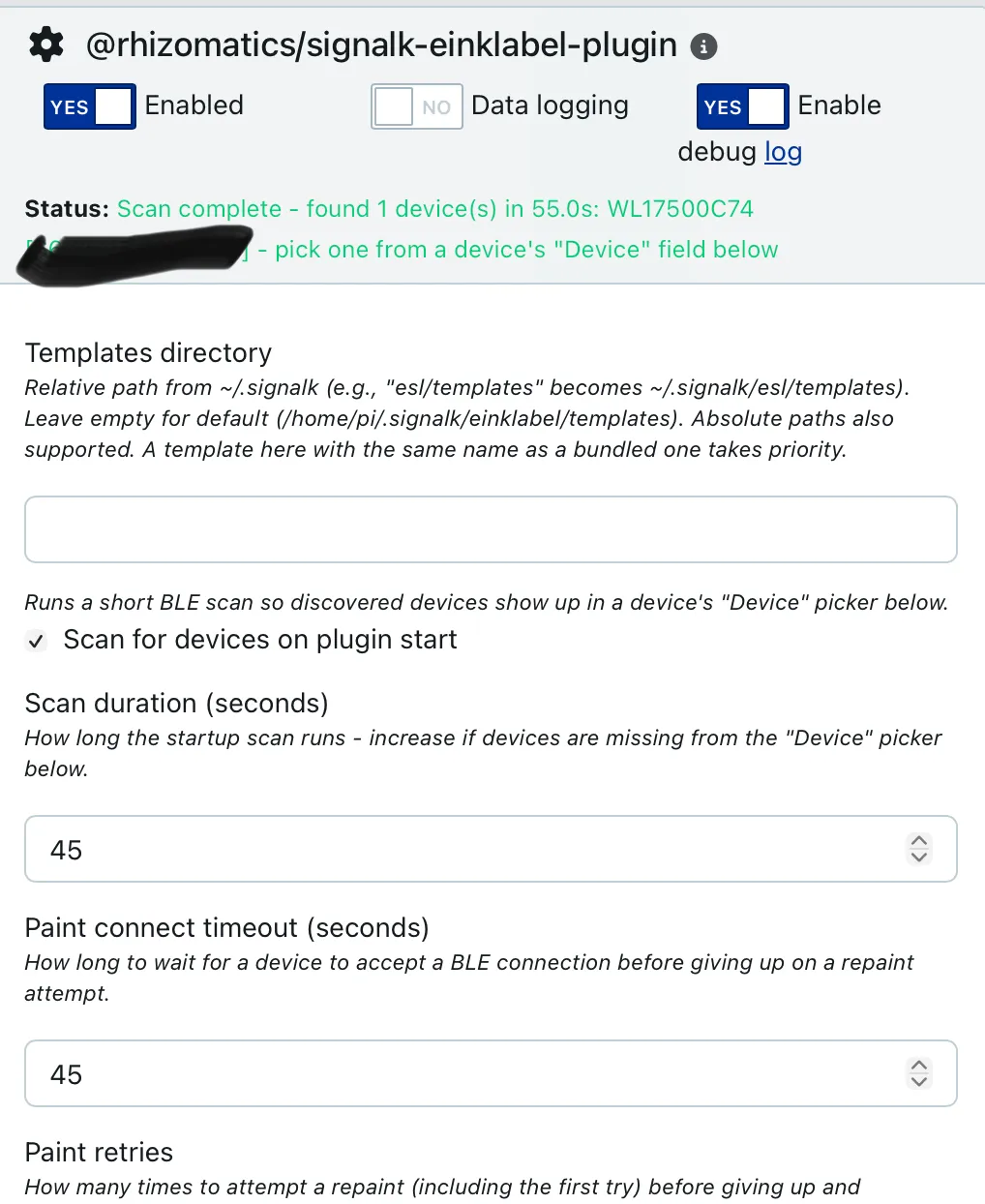

Configuration

Use the standard configuration option in the SignalK menu for the plugin.

Examples

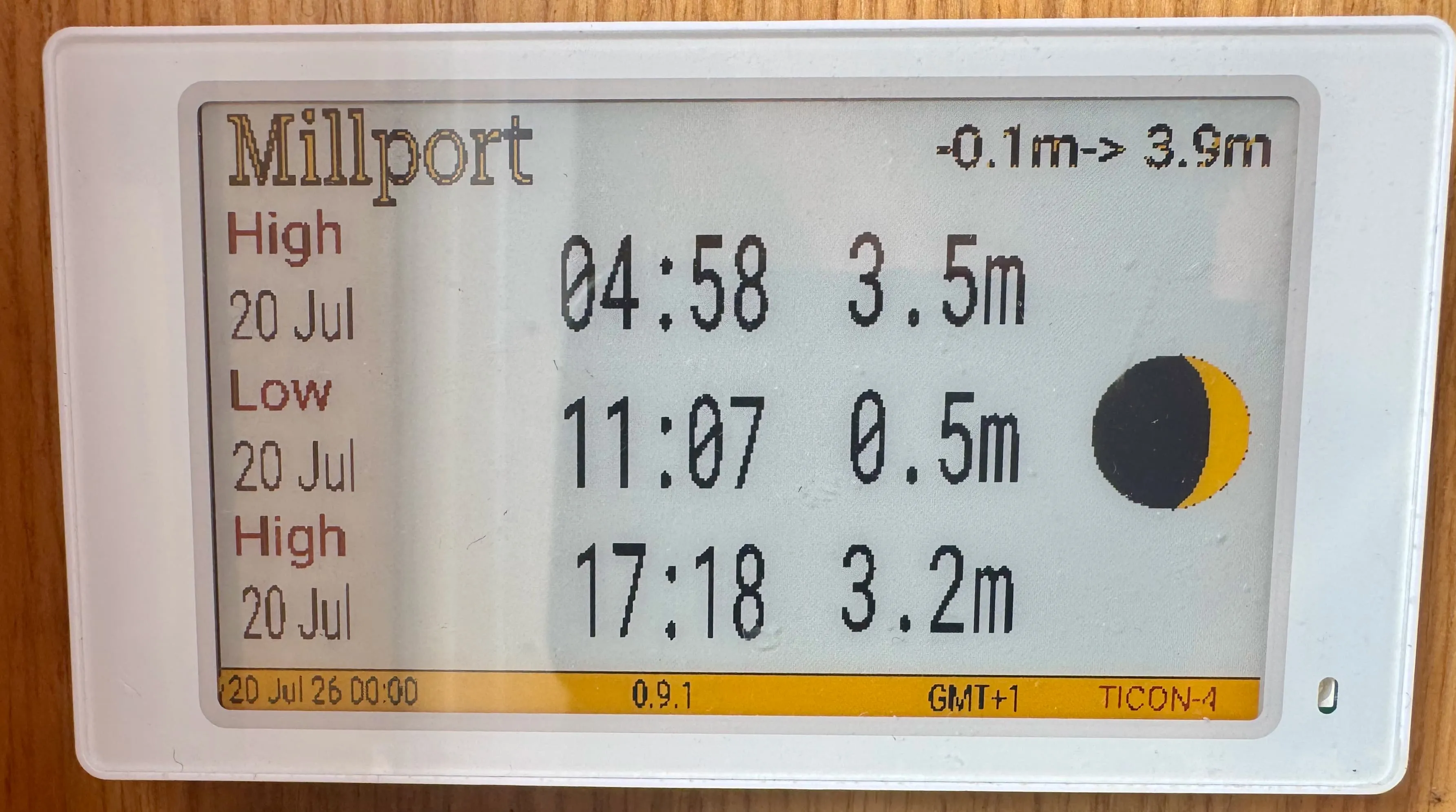

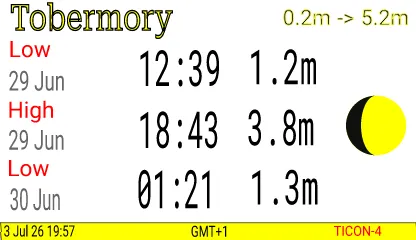

Tide Clock

Template available as 416x240-BWRY for 3.7“ ESLs and a simpler template, sized 250x128, also BWRY, for the cheapest 2.13“ labels.

Pre-requisites

A tides provider plugin for the Resources API installed and enabled, currently one of:

• signalk-tides - uses neaps library for international off-line coverage
• signalk-mareas-ihm - interfaces with official Spanish IHM tidal predictions, or falls back to Open Meteo and signalk-tides

The tides templates can be customized to run with any tide provider, a specific one, or switch to other APIs or SignalK data paths.

• In the template it uses a SVG description like source=resources,resource=tides,provider=tides,path=extremes[0].time,format=local_time to get the first tide time, ensures it’s the preferred signalk-tides provider and makes it a simple local time rather than a UTC date-time.

To show the lunar phase, the environment.moon.phaseName path is required, which can be easily achieved by installing and configuring the derived-data plugin.

Watch Schedule

Template available as 416x240-BWRY for 3.7“ ESLs.

Pre-requisites

• Source of watch.current and watch.next values
  • signalk-watch-schedule plugin

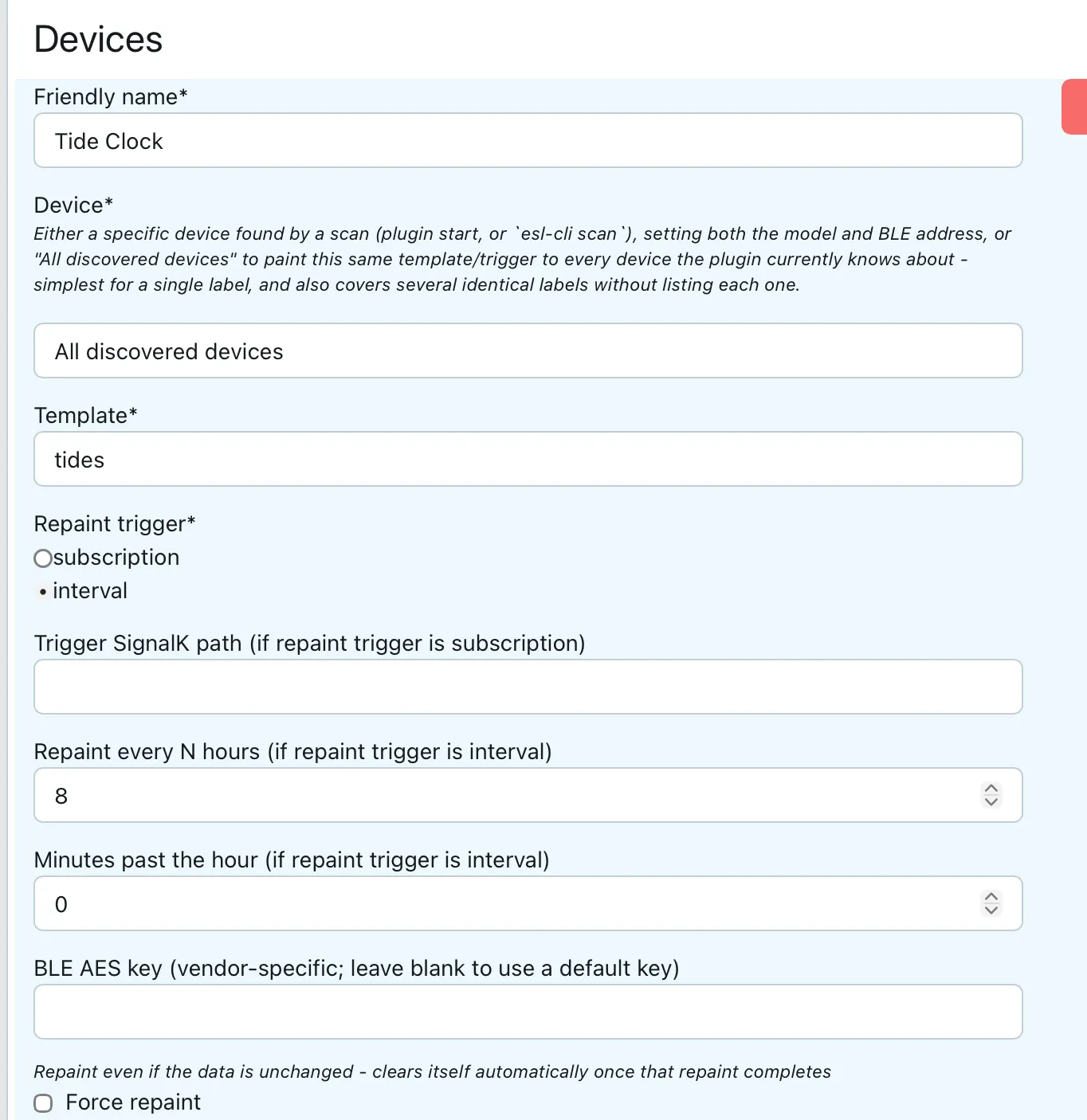

Setting up a Label

Enable the plugin, and use the large + sign to add a label, which opens up these fields.

• Friendly Name - Give the label any name (word or phrase) you like, for example ‘Tide Clock’
• Device - Unless you have multiple labels, don’t bother with pre-scanning or selecting a specific device, instead pick “All discovered devices” and it will paint any compatible labels it finds. If you want to pick a specific device, you’ll need to wait for a device scan to complete.
• Template - Choose a built-in template, one you’ve added to the local templates directory, or - if a companion plugin like @rhizomatics/signalk-einklabel-genai-plugin is installed - one of its own contributed entries (shown with a suffix, e.g. “forecast (GenAI)”)
• Location/description - Optional free-text notes on where this label is physically mounted/viewed from, e.g. “chart table, viewed from ~1m in poor light” - available to any template as source=einklabel,path=description or source=label,path=description
• Repaint Trigger- Do you want this to repaint every few hours (at a chosen minutes past hour), or when a SignalK path changes?
  • If it’s a SignalK path, enter it next, for example environment.tide.state
  • If it’s time based, enter how many hours between repaints, for example 00:00/08:00/16:00 for an 8h schedule, and if you want a specific number of minutes after the hour.

There are also two more advanced options, which can usually be ignored.

• BLE AES key - Only needed if the default key doesn’t work and you have a better alternative, otherwise ignore
• Force Repaint - Next time the label is due to be painted, update even if the data or template hasn’t changed (this flag will automatically be cleared after this.)

When the plugin starts, it will automatically re-paint the label if it’s new, or the last timed slot was missed and the data has changed.

Scanning for Devices

Since these are ultra-low power devices, they don’t respond instantly to either identify themselves or accept a new image. By default, both scanning and painting have time-outs to wait for a response, which can be altered in the plugin configuration or CLI argument.

One other quirk is that some devices respond with a different name at different times, for example the generic WOESL sometimes and model specific WL17500C74 other times. However, the MAC address, e.g. 66:66:17:50:0D:2B is constant, and this is what’s tracked by the plugin.

The plugin can optionally re-scan whenever it starts up (off by default), although this isn’t essential once a label has been configured. Devices found by any scan are remembered across restarts - see the FAQ below.

Vendors

Zhsunyco

Also known as ‘Suny’ and ‘WOLink’.

• BLE ESLs
  • The range of labels available on retail sites like AliExpress may be larger than on their corporate site
  • In mid 2026, a 4 colour (BWRY) 3.7“ label retailed for about $35, with quantity discounts for bulk sets
  • Cheapest units are 2 colour 1.54“, and they go up to 7.5“

Python code for a variety of their labels at https://github.com/roxburghm/zhsunyco-esl and https://github.com/NickWaterton/Wolink

Templating

Templates are simply SVG files, to which expressions can be added to use SignalK data, with options to make it easier to read, like rounding or simplifying dates and times. The template can have sample data in the placeholder, so is easy to layout and visualize.

Template Families (multiple panel sizes/colours)

A “Template” selection can either be one specific .svg file, or a directory holding several versions of the same template for different panel sizes/colour-sets, e.g. templates/tides/416x240-BWRY.svg and templates/tides/250x128-BWRY.svg both implement the tide clock, just at different sizes.

Each template is named <width>x<height>-<colours>.svg, where <colours> is one letter per supported colour: B(lack)/W(hite)/R(ed)/Y(ellow) - e.g. BWRY for a 4-colour panel, BWR for a 3-colour one.

Selecting the directory (e.g. tides) instead of one file lets one DeviceConfig entry - especially a device: "All discovered devices" entry covering several different physical panels - automatically pick the best-fitting file for each device’s actual size/colours, trying in order:

1. An exact width/height/colour-set match.
2. Failing that, width/height alone (any colour-set).
3. Failing that too, the nearest width, tie-broken by whichever file’s own height/width ratio is closest to the device’s.

Template Source Specification

In the description of the SVG text box, use a comma separated set of key value pairs to define the data source and formatting.

SignalK Paths

For example, path=environment.forecast.description uses the default data source (the self vessel context) and the named SignalK path. A bare path with no key/value pairs at all, e.g. just environment.forecast.description, is shorthand for the same thing. Overriding the default context can be done with path=environment.forecast.description,context=vessels.urn:mrn:imo:mmsi:232345678 - the context value must match a real SignalK context exactly as it appears in the Data Browser.

SignalK REST APIs

The source can be overridden to use the SignalK server’s Resources API instead. Change source to resources and specify which resource with resource. If there are multiple providers for the same resource, and they’re not equally useful, then either set a default provider in SignalK, or use the provider tag to set the name.

For example, source=resources,resource=tides,provider=tides,path=station.name picks the tides resource and pulls the station.name path out of the JSON response - this works for any resource type (tides, waypoints, routes, …), and needs nothing configured: the plugin reaches the Resources API directly. Where a resource is specified, it will be fetched once for that render, and subsequent fields sourced from the same resource use that cached response. provider is optional, the default provider will be used if not specified.

Plugin Derived Data

source=einklabel reads data injected by the plugin itself, rather than from SignalK. Available paths:

• path=repainted - the timestamp of the current repaint - for example source=einklabel,path=repainted,format=local_datetime_short to show when the label was last updated.
• path=local_zone - a short zone name (e.g. BST) for the same timezone used for local_time/day_mon/local_datetime_short (see above) - a fallback for environment.time.timezoneRegion,format=utc_offset on installs that never publish that path, since it needs no SignalK metadata of its own. Falls back to a plain UTC offset like GMT+1 where the host’s locale has no real abbreviation for the zone.
• path=plugin_version - expose the version of the eInk Label plugin itself.

Customizing Output

A format can be specified to make the value easier to understand. The supported formats are:

• local_time - reduce a time stamp to just the time (H:M:S), omitting the date, and applying daylight savings if appropriate
• day_mon - reduce a time stamp to day and month, e.g. 27 Jun, applying daylight savings if appropriate
• local_datetime_short - format a time stamp as day, abbreviated month, 2-digit year and 24h time, e.g. 21 Jun 26 18:05, applying daylight savings if appropriate
• utc_offset - Show a timezone in UTC+01:00 style format
• position - Format a { latitude, longitude } value as decimal degrees with hemisphere letters, e.g. 56.6250°N 6.0700°W
• raw - Don’t apply automatic SignalK unit conversion and symbol display (see below)

SignalK’s unit preferences are used to automatically convert a signalk-sourced numeric value to its preferred display unit, and append a unit symbol like kt or m, unless format=raw is specified to switch that off. However, when using plugin or API data there may be no path metadata to convert from (for example signalk-tides publishes tide data to the Resources API, and level is a raw metre value with no SignalK path of its own) - in these cases an explicit category can be given instead, and the unit preferences will be applied the same way, for example category=depth for the tides level figure.

Note that for dates and times, the server timezone must be set correctly, for example Europe/London rather than the default Etc/UTC. This can be done on Linux using timedatectl or raspi-config if using a Raspberry Pi with Raspian.

Common categories

• depth - Use the SignalK preferred depth unit, make the conversion if needed, and tack on the unit name as a suffix
• speed - Use the SignalK preferred speed unit, make the conversion if needed, and tack on the unit name as a suffix
• temperature - Use the SignalK preferred temperature unit, make the conversion if needed, and tack on the unit name as a suffix

Additionally, round=n can be used to round to limited decimal places.

default=<value> substitutes <value> whenever the resolved value is missing (e.g. an unpublished path), instead of falling through to an empty string - useful anywhere a blank would be misread as a real answer. default= with nothing after the = still counts as set, deliberately defaulting to an empty string rather than leaving the fallback behaviour unchanged.

These can all be combined as in source=resources,resource=tides,provider=tides,path=extremes[2].level,category=depth,round=2

Non-Textual Fields (Images)

The same <desc> mechanism works on an <image> element instead of a <text> element, for a value that’s better shown as a picture than as text - a moon phase icon, a wind direction arrow, a weather condition glyph, and so on. Rather than substituting text, the resolved value picks one of a directory of .svg files to embed, by an extra required assets= key naming that directory - an .assets/<name> sub-directory looked up in your configured templates directory first, and the bundled templates directory otherwise. For example, the tide clock’s moon phase icon uses:

path=environment.moon.phaseName,assets=lunar_phases

which resolves against templates/.assets/lunar_phases/ (bundled, or your own configured templates directory’s .assets/lunar_phases/ if you have one). The resolved value (e.g. "Waning Gibbous", as published by the derived-data plugin) is normalized to match a filename - lower-cased, punctuation and spaces collapsed to underscores - so "Waning Gibbous" picks waning_gibbous.svg out of that directory. If the underlying path has no value at all (e.g. the derived-data plugin isn’t installed), or the value doesn’t normalize to any file in the directory, the <image> element is omitted from that render - no broken image, no placeholder, nothing shown - and a line is logged to the console so a missing/unmatched value isn’t silently invisible.

If you don’t like the bundled moon phase icons, save your own <value>.svg files in the .assets/lunar_phases sub-directory of your configured templates directory - the whole directory is used in place of the bundled one, so add all 8 phases you want to keep, not just the ones you’re changing. These moon phases can be re-used in any other label.

This is a general mechanism, not specific to moon phases - any source/context/path/format combination valid for a <text> binding works here too (a source=resources value, an explicit category=, etc.), the only difference is the required assets= directory and the “no match -> no image” behaviour instead of substituted text. To add your own, put a directory of <value>.svg files under an .assets/<name> sub-directory of your templates directory, add an <image> element in your SVG editor at the size/position you want, and give it a <desc> the same way you would a text field - overriding just the template, just its assets, or both together, all work independently.

Fonts

Three font types are loaded by default, use the generic font family, or exact font name, in the SVG editor and choose size and weight (bold, semi-bold etc). Some labels will make a decent attempt to gray scale. Use the simple pure red, yellow, white, black to match the label’s limited colour choice (some labels only offer black and white, or black/white/red). If a font can’t be matched it will default to (sans-serif) Roboto.

• serif - Roboto Serif
• sans-serif - Roboto
• monospace - Roboto Mono

GenAI Rendering

As an alternative to hand-designed SVG templates, a device’s content can be generated by an LLM instead - this is provided entirely by a separate companion plugin, @rhizomatics/signalk-einklabel-genai-plugin, not by this core plugin. The base plugin (BLE painting, SVG templates) has nothing to do with any LLM SDK or API key, so installing it never pulls in GenAI dependencies unless you also explicitly install and enable the companion plugin - the split is deliberate, for anyone on a small/constrained install or who’d simply rather not have any GenAI code in their install at all.

Once the companion plugin is installed and enabled, its own config screen handles provider/model/API-key selection (OpenAI, Anthropic, Google, xAI, DeepSeek, Moonshot AI, Ollama, or any other OpenAI-compatible endpoint), and its prompts show up as ordinary entries in this plugin’s “Template” dropdown, suffixed (e.g. “forecast (GenAI)”) - pick one exactly like you’d pick a .svg file. Under the hood it’s a TemplateProvider (see Extending below) - the same extension mechanism a new vendor’s hardware driver uses - so from this plugin’s point of view it’s just another way templateName gets resolved to an image.

If the LLM call fails (network/API error, exhausted retries) or its response isn’t renderable, this core plugin pushes its own bundled warning template instead of leaving the previous, possibly now-wrong, content on screen - so a stale weather prompt never quietly shows yesterday’s forecast through today’s storm. This is a generic safety net, not GenAI-specific: the exact same fallback covers a broken hand-authored template failing to render at all. The next scheduled repaint retries automatically. Since each repaint may call a (usually paid) LLM API, a GenAI-backed device should use Repaint Trigger interval, not subscription.

See the companion plugin’s own README for installing it, writing prompts, and its esl-cli prompt/generate commands for testing prompts without a device.

Architecture

The primary things managed and provided by the plugin are:

• ESL Vendor
  • Sub-package per vendor
• ESL Device
  • Metadata in the vendor package, using a pid or sometimes pid combined with hwid in the BLE results to pinpoint a model
• SVG Template
• SignalK API base URL
  • Used for automatic unit conversion on signalk-sourced numeric values and for resolving an explicit category= binding - neither has an in-process equivalent, both go via this server’s own REST API
  • Optional: left blank, the plugin probes the probable values in likelihood order at startup - http://localhost:3000, http://localhost, https://localhost. Set it explicitly to skip probing
  • Either way, errors clearly if nothing responds (wrong port) or the probe is rejected (anonymous read access not enabled) - these endpoints must allow anonymous read access, since the plugin has no login flow

Command Line Interface

To get fast feedback on templates and shelf devices without updating and configuring SignalK, a CLI call esl-cli is provided when the module is manually installed that has these commands. Use --help to get all the options.

• vendors - list supported vendors
• scan - report supported devices found from a BLE scan

See also the commands useful for debugging under [Developing Templates]

• render - transform an SVG template and data into a PNG
• paint - render an SVG template and data to a selected ESL

The width, height, vertical offset and colour palette for the device are taken from the internal register of devices, however can be overridden on the command line. This could be used to help you choose what size of label to buy, or to get an unsupported label working.

esl-cli can also be extended with new subcommands by a -r/--require’d package - see Extending below - which is how @rhizomatics/signalk-einklabel-genai-plugin adds its own prompt/generate commands for testing prompts without a device.

( The CLI can also be run from a checked out module, or by opening a terminal shell at ~/.signalk/node_modules/@rhizomatics/signalk-einklabel-plugin, as npx esl-cli command --args )

Scans from CLI

The command line tools, run from inside the .signalk directory, can be used to help troubleshoot

• Scan for longer, in this example 90 seconds
  • npx esl-cli scan -d 90
• Scan for all BLE devices, whatever they are
  • npx esl-cli scan -a

Extending

Hardware

Additional vendors and devices can be added by a separate npm package that implements the VendorDriver interface and registers itself - there’s no scanning of installed packages, registration is always an explicit call by the extension’s own code.

• import esl from '@rhizomatics/signalk-einklabel-plugin'; esl.registerVendorDriver(myDriver)
• In the SignalK runtime, call this from the extension’s own plugin start(). In the CLI, load the extension with esl-cli --require <module> <command>.
• Declare this package as a regular npm dependency in the extension package - not a peerDependency, per SignalK’s own guidance that npm’s peer-dependency resolution interacts poorly with the server’s plugin install layout - and declare the SignalK-level relationship via "signalk": { "requires": ["@rhizomatics/signalk-einklabel-plugin"] } in the extension’s own package.json instead, so the App Store can install/report it.

Template Providers

An alternative way to produce a device’s content, alongside hand-authored SVG templates, can be added the same way - esl.registerTemplateProvider({ suffix, listTemplates, render }), from a separate package’s own plugin start() (or esl-cli --require <module>). This is what @rhizomatics/signalk-einklabel-genai-plugin is: listTemplates() returns the entries it currently offers (already including its own suffix, e.g. "forecast (GenAI)") for the “Template” dropdown, and render(request) - given the same signalk/resources/label context any SVG template’s bindings get - returns a Bitmap, exactly as SvgRenderer.render() would. Rejecting from render() routes the repaint through this plugin’s own generic fallback-warning template, the same as a broken hand-authored template failing to render.

esl.SvgRenderer, esl.buildLabel, esl.findBindingsInText, and esl.substituteBindingsInText are also exported for a TemplateProvider extension to reuse - e.g. to resolve its own {...}-style placeholders against the request’s context, or to rasterize whatever SVG it produces into the Bitmap its render() must return.

Developing Templates

See the [Templating] section for more details.

Templates can be added to the configurable directory. Inkscape free, open source, and recommended for editing templates, or your own favourite editor, or by hand in a text editor for hard core (or just tidying up the template side).

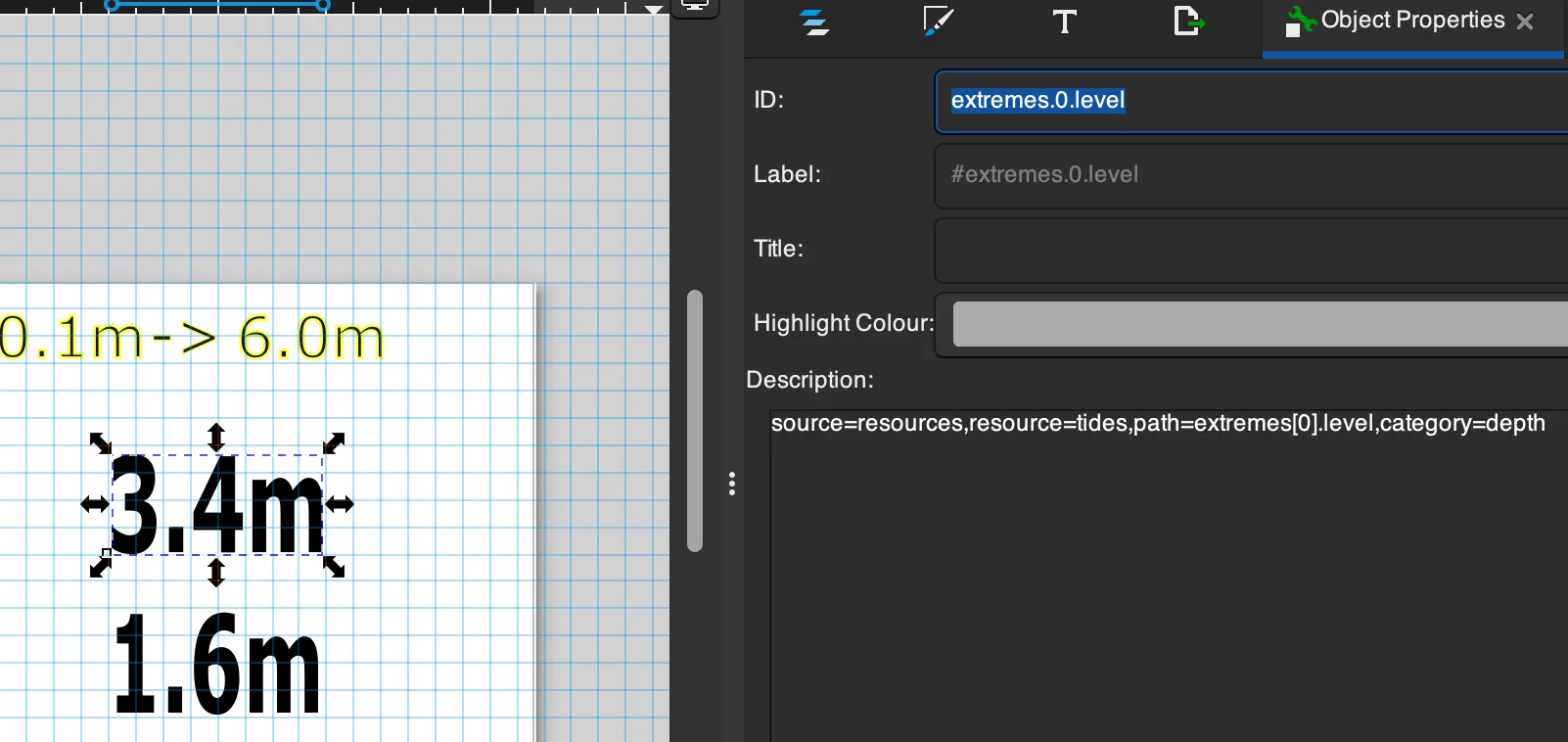

The object ID and label aren’t used by the plugin, only the description is used to define fields. You can also add in ordinary text fields without field definitions, as labels, logos, help text etc.

Placeholder text isn’t necessary, and is ignored by the plugin, but makes it much easier to visualize the result.

Inkscape adds its own metadata to images, which can be stripped off by exporting a simple SVG, although can be left in place with no harm; main reason to simplify the SVG is manual changes in a text editor.

Due to a limitation in the resvg-wasm library used to turn SVGs into images, the font-family is limited to serif,sans-serif,monospace or the exact name of one of the installed fonts - Roboto (sans serif), Roboto Serif or Roboto Mono.

Inkscape has its own fonts, which won’t match what’s available in the SignalK plugin, so for more precise design, install Roboto from Google via the web page, brew on MacOS or similar.

Debugging Templates

The esl-cli can be used to debug and validate templates quickly:

• render - Render templates with SignalK data and write to a local PNG file
• paint - Render templates with SignalK data and send to selected ESL device
• fields - List the fields in the template, with the source specification and the rendered data value
• field - Accept a source specification (outside of any template context) and return the rendered value if available

Examples

List all Fields and Rendered Values

npx esl-cli fields -t templates/tide.svg -u http://localhost

id                   spec                                                                                    value
station.name         source=resources,resource=tides,provider=tides,path=station.name                        Tobermory
source.name.         source=resources,resource=tides,provider=tides,path=station.source.name                 TICON-4
last_repaint         source=einklabel,path=repainted,format=local_datetime_short                             30 Jun 26 00:08
extremes.0           source=resources,resource=tides,provider=tides,path=extremes[0].label                   Low
extremes.1           source=resources,resource=tides,provider=tides,path=extremes[1].label                   High
extremes.2           source=resources,resource=tides,provider=tides,path=extremes[2].label                   Low
timezoneRegion       source=einklabel,path=local_zone                                                        BST
lat                  source=resources,resource=tides,provider=tides,path=station.datums.LAT,category=depth   0.2m
hat                  source=resources,resource=tides,provider=tides,path=station.datums.HAT,category=depth   5.2m
extremes.2.level     source=resources,resource=tides,provider=tides,path=extremes[2].level,category=depth    1.1m
extremes.2.time      source=resources,resource=tides,provider=tides,path=extremes[2].time,format=local_time  13:15
extremes.1.level     source=resources,resource=tides,provider=tides,path=extremes[1].level,category=depth    3.8m
extremes.1.time      source=resources,resource=tides,provider=tides,path=extremes[1].time,format=local_time  07:05
extremes.0.time      source=resources,resource=tides,provider=tides,path=extremes[0].time,format=local_time  01:21
extremes.0.time-8    source=resources,resource=tides,provider=tides,path=extremes[0].time,format=day_mon     30 Jun
extremes.0.time-8-5  source=resources,resource=tides,provider=tides,path=extremes[1].time,format=day_mon     30 Jun
extremes.0.time-8-9  source=resources,resource=tides,provider=tides,path=extremes[2].time,format=day_mon     30 Jun
extremes.0.level     source=resources,resource=tides,provider=tides,path=extremes[0].level,category=depth    1.3m

Offline Working

render and paint need a --url argument to point to the SignalK server to retrieve data. If you don’t have access to one, you can use --example-data or -e to point to a directory of example data, which is bundled with the plugin or available in GitHub at examples. This also allows you to write templates for resource APIs that aren’t available yet.

• vessels.json - The standard SignalK vessel paths
• resources/xxxx.json - The output of the xxxx resources API call
• categories.json - SignalK unit categories needed for category=depth type formatting

For example, npx esl-cli fields -t templates/tide.svg -e examples will show all the field data that will be populated from the example API, vessel and category data in the examples local directory.

Frequently Asked Questions

I can’t see my device as a choice on the drop-down list after scan

SignalK plugins lack the ability to self-update after something like a scan, so first time round you may have to close the config and reload it to see this. Subsequently the plugin will remember all scanned devices, and only drop previously seen ones if it goes 24 hours without a positive scan or with failed paint attempts.

Easiest way to solve this is to choose ‘All Discovered Devices’ in the device configuration, and it will paint any compatible devices it finds on future scans.

Sometimes values are missing on the display

If the plugin repaints a display at server startup, then the plugin that provides the data may not have started ( or in the case of derived-data the plugin that the plugin depends on! ) and unlike Home Assistant, there’s no good way of sequencing the start of plugins.

Use the settle time, to impose a minimum wait between the eInk Label plugin being initialized, and it attempting to paint any displays, and increase this value if it’s still missing data.

Times are showing incorrectly

If times are in the wrong timezone, or don’t have daylight savings applied correctly, then check that the server itself (at the Linux level, not SignalK, which doesn’t know) is configured for your timezone, assuming of course that you’re a coastal sailor. Use raspi-config on a Raspberry Pi, or timedatectl on a Linux server.

If you’re a global cruiser, then use something like signalk-set-gps-timezone to set the value in the operating system.

The ESL signal is too weak from my SignalK server

Try a BLE proxy device, ESP32 is popular for this.

Can’t edit the text contents of SVG template in VSCode

If you have an SVG viewer extension, this will show the image rather than allowing editing of text. To solve, right click on the file in VSCode Explorer view and choose to edit with Text Editor.

Description is set in InkScape but doesn’t render

Check if the text boxes are normal text or flowed text, and correct to normal text.

My label just shows “CONTENT UNAVAILABLE”

That’s the bundled fallback warning, not necessarily an error in this plugin - it means the most recent repaint failed, whatever produced the content (a broken hand-authored template, or a TemplateProvider extension like @rhizomatics/signalk-einklabel-genai-plugin - e.g. its LLM call failing on no network/API access, an invalid API key, or a response that wasn’t a renderable SVG, after using up its configured retries). Check the SignalK server logs (debug logging on for this plugin) for the specific error, and if it’s a GenAI device, check that plugin’s own provider/API key/model settings. This plugin deliberately never leaves old content on screen when a repaint fails - it retries automatically at the next scheduled interval.

SignalK starts before the Bluetooth daemon — does the plugin need bluetoothd running at boot?

The plugin retries BLE adapter initialisation with backoff (starting at 2s, capping at 30s) if bluetoothd/D-Bus isn’t up yet when the plugin starts, so a slow-starting Bluetooth stack on boot will no longer strand it — it keeps retrying until the adapter appears rather than failing once and giving up. You’ll see BLE adapter not ready … — retrying in Ns … in the SignalK logs in the meantime.

That said, it’s cleaner to fix the boot ordering at the systemd level so the plugin finds the adapter ready on its first attempt. If SignalK runs as a systemd service (systemctl status signalk) and its unit file has no [Unit] section (check with systemctl cat signalk), add one:

sudo systemctl edit signalk.service

This opens an override file — add:

[Unit]
After=bluetooth.target
Wants=bluetooth.target

Save and exit, then:

sudo systemctl daemon-reload
sudo systemctl restart signalk

This tells systemd to start bluetoothd first and wait for it before starting SignalK, rather than relying on both racing to start in parallel at boot.

Other ESL and General eInk Resources

• Open ePaper Link - Alternative open source firmware to flash onto eInk shelf labels, with Home Assistant integration.
• zhsunyco-esl - Python interface
• WoLink - Python interface and protocol analysis
• e-ink dashboard for Signal K - Waveshare display based multi instrument display.
• eInk Dashboard Modern SK - SignalK dashboard for non-ESL eInk display.
• esp32-esl-system - Docker and ESP32 based system for updating ESLs.
• hass-gicisky - Home Assistant integration for Gicisky ESLs ( a similar vendor to Zhsunyco). Uses imagespec for templating.
• ha-panda - Home Assistant integration for Panda ESLs ( a similar vendor to Zhsunyco).
• Dmitry.gr - Personal site of an ESL hacker
• Aaron Christobel - YouTube channel of an ESL hacker.
• rbaron.net - Blog of an early ESL hacker.
• Pimoroni - All shapes and sizes of eInk displays, aimed at hackers, and with an inky GitHub project to support them.
• WaveShare - Wide range of eInk displays for hardware projects, not limited to ESLs.

See also the Boat Tech Directory.
